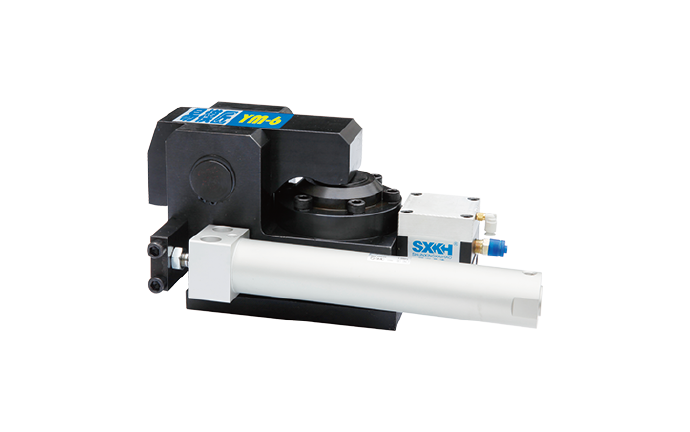

YM Series

Contact Us

See Now

Video

Watch
  • Omron PLC control system
  • Reduce die change timing
  • Reduce human risk
  • Reduce labor cost and strength
  • Independent power unit
Parameter
IMM Capacity (T) Hyd.Clamps Type Unit Clamping Force (T) Fixed Platen Qty. Movable Platen Qty. Max Clamping Force (T)
60-120 YM2 2 4 4 8
160-250 YM4 4 4 4 16
280-380 YM6 6 4 4 24
470-530 YM10 10 4 4 40
600 YM10 10 6 6 60
700-900 YM16 16 4 4 64
1000-1300 YM16 16 6 6 96
1400 YM25 25 4 4 100
1600-1850 YM25 25 6 6 150
2100-2800 YM25 25 8 8 200
3300 YM50 50 6 6 300
4000 YM50 50 8 8 400
Functional Characteristics
  • Self-lock Valve

    Self-lock valve ensure all clampers keeping clamping force under the condition of oil hose broken.

    Each clamper equipped with a self-lock valve to ensure the clamping force when oil pipe broken.

  • SMC automatic cylinders which improve automation easy to use

    Equipped with air cylinder to improve the automation, shorten the time to exchange mold and reduce labor intensity.

  • Combination of pneumatic hydraulic pump station is oil supply system for the whole quick die change system

    1.This is oil supply system of the whole QDCS, which adopts imported air-driven pump; double and single pump design for power output.

    2.When pump station stops pressurizing, the system is in low pressure state and no energy- consuming.

    3.Using patented technology group valve, Independent four circuit design, when power off and air off, the system self - lock still keeps the pressure.

    4.Pneumatic components adopt Japan SMC, and imported seals.

  • PLC Control

    1.Using omron PLC control system.

    2.PLC communicate intelligently with machine and multi-layer safety interlock avoiding operational errors.

    3.Specific single side die change function, double confirmation about avoiding operational errors. Equipped with key switch to prevent the artificial operational errors.

    4.If machine or die change is abnormal, then clampers starts warning and injection machine stop working automatically.

    5.Integrated operation panel, simple operation.

    6.LED indicating light display the allowing state of whole system.



Down Load Catalogue(PDF)

×
