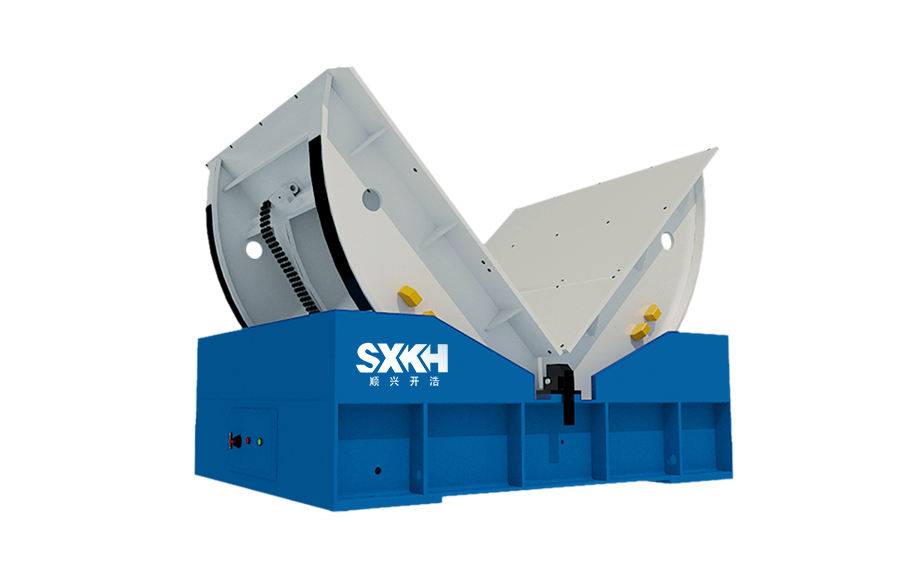

90° Mold Flipper

Contact Us

See Now


  • Electrical motor driven
  • Make the mold & die reverse at 90 degree
  • Fast and convenient overturning process
  • Double rails and bush roller chain ensure stable revolving
  • Travel switch limit rotation bracket on the 90 degree position
  • Electric cabinet &moveable operation panel and button
  • Easy operation
  Overturn Capacity( KN) Table Size(mm) Table Height(mm) H1
FMG-5T 50 1100*1250 605
FMG-10T 100 1300*1400 730
FMG-15T 150 1500*1650 730
FMG-20T 200 1600*2000 860
FMG-30T 300 1800*2000 985
FMG-50T 500 2010*2500 985

Now turning the large dies / moulds is safer and quicker. When any die / mould used in horizontal Injection moulding or Die Casting Machine is to be opened for maintenance, it requires to be turned 90 degree first. Smaller moulds are easier to turn 90 degree however when moulds are very big and heavy, it’s a very risky, time taking and laborious job. We have two solutions for this – 90 degree turn Table and 180 degree Mould Flipper.

Electrical motor driven.

Economical and free maintenance.

Less space demand.

More than 10 years’ experience in researching and producing mold flipper.
